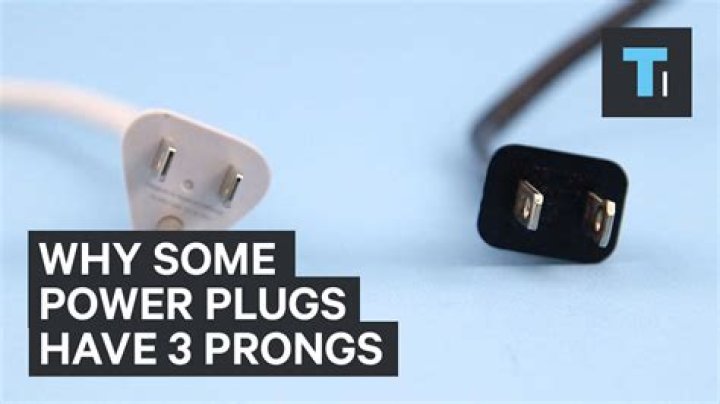

Why does my plug have a sideways prong?

20-amp receptacles have a horizontal slot branching off one of the vertical slots. Appliances, such as microwaves, often have 20-amp plugs and must be plugged into a 20-amp outlet. Electrical plugs designated as 20-amp will not fit into 15-amp outlets.

Why do some outlets have a sideways T?

The T-shaped slot indicates that the 120-volt receptacle is rated for 20-amps. Regular wall receptacles with a pair of vertical slots are rated for only 15-amps, but the T-shape enables it to accept either a 15- or 20-amp plug.

Does the orientation of a plug matter?

The most basic answer is that it doesn't matter which way your outlets are oriented. Select the strategy that best works for you and the devices that are plugging into the outlet.

Why do plugs have different shapes?

Companies in Europe realized that supplying power at 220 volts instead of 110 volts would be cheaper. At a higher voltage, electric companies can deliver the same power with less current – picture a narrow stream flowing quickly compared to a wider stream flowing slowly. And less current allows for thinner wires.

Why do some plugs have a bigger side?

Why One Prong Is Bigger. Polarized nongrounding-type plugs have one prong, the neutral, that's larger than the other to ensure that the hot wire, which is the smaller one, is tapped correctly. Electricity streams in a circuit, which is a closed path of components where electrons flow from a current source.

Why Do Electric Plugs Have Holes? Answered

Is the wide prong neutral or hot?

The wide prong on the plug links the threaded base of light bulbs to the neutral terminal (the wider slot) in the receptacle. The hot side of the outlet (the side that can deliver a shock) is wired to the threaded socket if the wires are reversed.

Which side of the plug is live?

The live wire is on the left-hand side while the neutral wire is on the right-hand side. It is fairly simple to connect the wires to the plug socket this is because all plugs today come with connectors. Wiring a plug socket is extremely simple and can be easily done by beginners.

What is China plug?

For China there are three associated plug types, types A, C and I. Plug type A is the plug which has two flat parallel pins, plug type C is the plug which has two round pins and plug type I is the plug which has three flat pins in a triangular pattern. China operates on a 220V supply voltage and 50Hz.

What is a Type I plug?

Countries Using Type I Electric Plug

The Type I Electrical Plug has two flat, oblique blades that form an inverted V, and a grounding blade. American Samoa, Argentina*, Australia, China, El Salvador, Fiji, Guatemala, Kiribati, Nauru, New Zealand, Okinawa, Panama, Papua New Guinea, St.

What does an American plug look like?

For USA there are two associated plug types, types A and B. Plug type A is the plug which has two flat parallel pins and plug type B is the plug which has two flat parallel pins and a grounding pin. USA operates on a 120V supply voltage and 60Hz.

Why do electricians put outlets upside down?

Easier to Identify Switched Outlets

Electricians may position the outlet in an upside-down position so that you can quickly identify the switch-controlled receptacle. Since it stands out visually to most people right away – it provides convenience to the occupants to easily remember which outlet is switch controlled.

Which way should a plug face?

The National Electrical Code (NEC) doesn't require a certain direction. The NEC allows outlets to be installed with the ground plug hole facing up, down or sideways. It's up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.

Why are plugs upside down in hospitals?

All that holds a faceplate in position is one short screw for an AC receptacle. If the screw loosens and falls out, the faceplate will drop down and short out the two power prongs on anything that is plugged into that outlet. Such accidents used to be commonplace which is why power receptacles were put in upside down.

Why is a 20-amp plug sideways?

The standard which applies is that a male cord end on equipment which requires a 20A circuit will have one blade horizontal, so that it will not fit into a 15A receptacle.

What are the 4 types of electrical outlets?

7 Electrical Outlet Types & How To Use Them

• 15-Amp Duplex Receptacle. In the U.S., most homes have a combination of 15-amp and 20-amp, 120-volt circuits. ...
• 20A Outlets. 20A outlets, combined with 20A circuits, are a good choice for devices in need of more power. ...
• Switched Outlets. ...
• GFCI & AFCI Outlets. ...
• USB & Smart Outlets.

Is it code to install outlets upside down?

In reality, there is no code requirement that says an outlet receptacle should be installed one way or the other. In fact, at one time some manufacturers actually recommended the orientation that many of us view as upside down—with the round grounding slot at the top.

What does a Type D plug look like?

The Type D electrical plug is also known as the Old British Plug. It has three large round pins in a triangular configuration, and may be found in countries that were originally electrified by the British.

What does a Type F plug look like?

Plug type C is the plug which has two round pins and plug type F is the plug which has two round pins with two earth clips on the side.

What does a type G plug look like?

The Type G plug has three rectangular pins in a triangular pattern and includes a fuse (usually a 3A fuse for smaller appliances, such as computers, or a 13A fuse for larger appliances, such as heaters). British sockets also have shutters on the live and neutral contacts to prevent the introduction of foreign objects.

What do Hong Kong plugs look like?

For Hong Kong there are two associated plug types, types D and G. Plug type D is the plug which has three round pins in a triangular patternand plug type G is the plug which has three rectangular pins in a triangular pattern. Hong Kong operates on a 220V supply voltage and 50Hz.

What is Japan power plug?

For Japan there are two associated plug types, A and B. Plug type A is the plug which has two flat parallel pins and plug type B is the plug which has two flat parallel pins and a grounding pin. Japan operates on a 100V supply voltage and 50/60Hz.

Why does Europe use different outlets?

Companies in Europe realized that supplying power at 220 volts instead of 110 volts would be cheaper. At a higher voltage, electric companies can deliver the same power with less current – picture a narrow stream flowing quickly compared to a wider stream flowing slowly. And less current allows for thinner wires.

What happens if you wire a plug wrong?

But here's the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work, but the polarity will be backward. When this happens, a lamp, for example, will have its bulb socket sleeve energized rather than the little tab inside the socket.

Which side of a 3 prong plug is hot?

The color code is standard in electrical wiring. The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.

Which slot on plug is hot?

The left slot is slightly larger than the right. The left slot is called "neutral," the right slot is called "hot" and the hole below them is called "ground." The prongs on a plug fit into these slots in the outlet.
